With fast charging, clean power and low operating costs, the Spartan is set to make internal combustion trucks a thing of the past. These 5,000 lb capacity machines share the same chassis as LP and diesel trucks but run on a fully integrated lithium power source with the power, run time and uptime most indoor operations need. Why keep paying high fuel and maintenance costs? With the standard 460 Ah lithium battery, the Spartan runs over 6 hours continuously, charges fast, and eliminates eye-wash stations, mid-life battery replacement and routine battery maintenance. Built tough, it's the easiest decision on the market. The time to go electric with lithium is now.
Get Pricing
Request a quote
Rent, buy or lease — tell us what you need to move.
Features
Built for all-day duty
Dual AC drive motors for exceptional maneuverability
UL-recognized 80V lithium-ion battery
6–6.5 hour run time
Opportunity charge up to 12% every 15 minutes

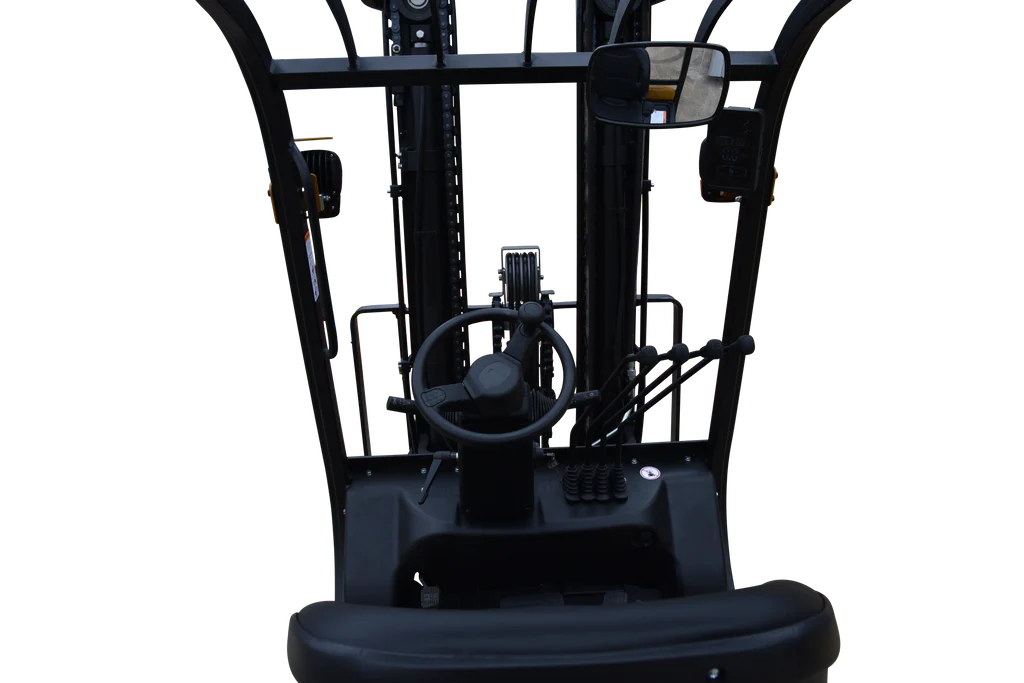

Larger, more comfortable operator compartment than a traditional electric forklift
Sideshift for added productivity
Cushion tires for high-performance indoor operation
Specifications
Technical data
| Vehicle Type | Cushion Tire Lithium Forklift |
|---|---|
| Capacity | 5,000 lb @ 24" LC to 130"; 4,000 lb to 189"/197" |
| Power | UL-recognized 80V 460 Ah Li-ion battery |
| Max Lift Height | 189" to 197" |
| Collapsed Height | 83" to 90.7" |
| Fork Length | 42" standard, 48" optional |
| Charger | External 120V, 240V or 480V AC options |
| Vehicle Dimensions, Turning Radius, Travel & Lift Speed | See product information sheet |
