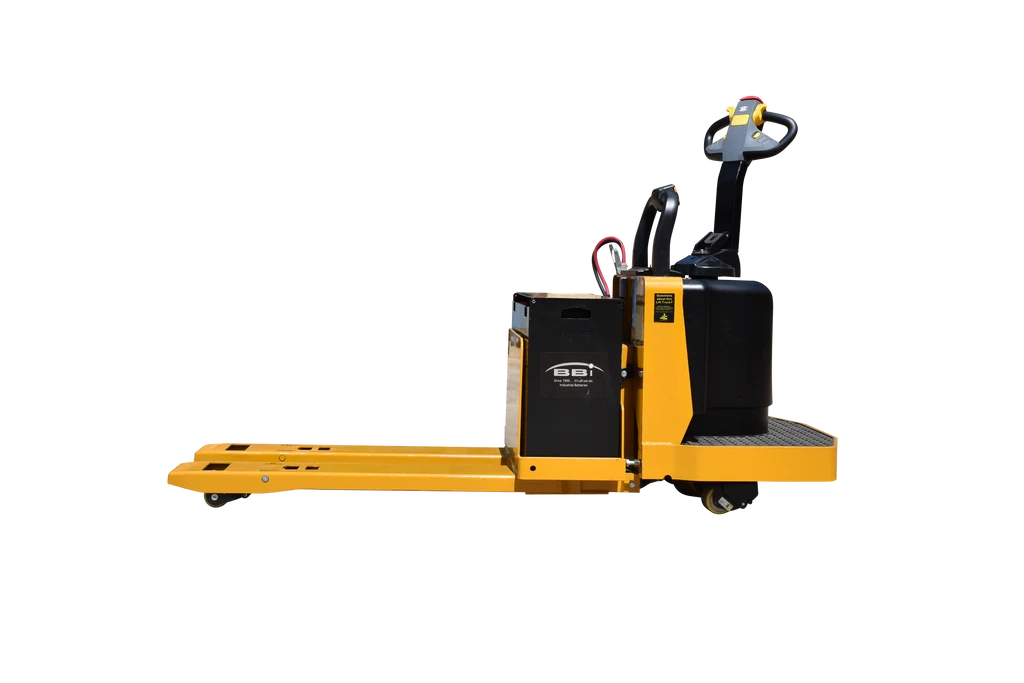

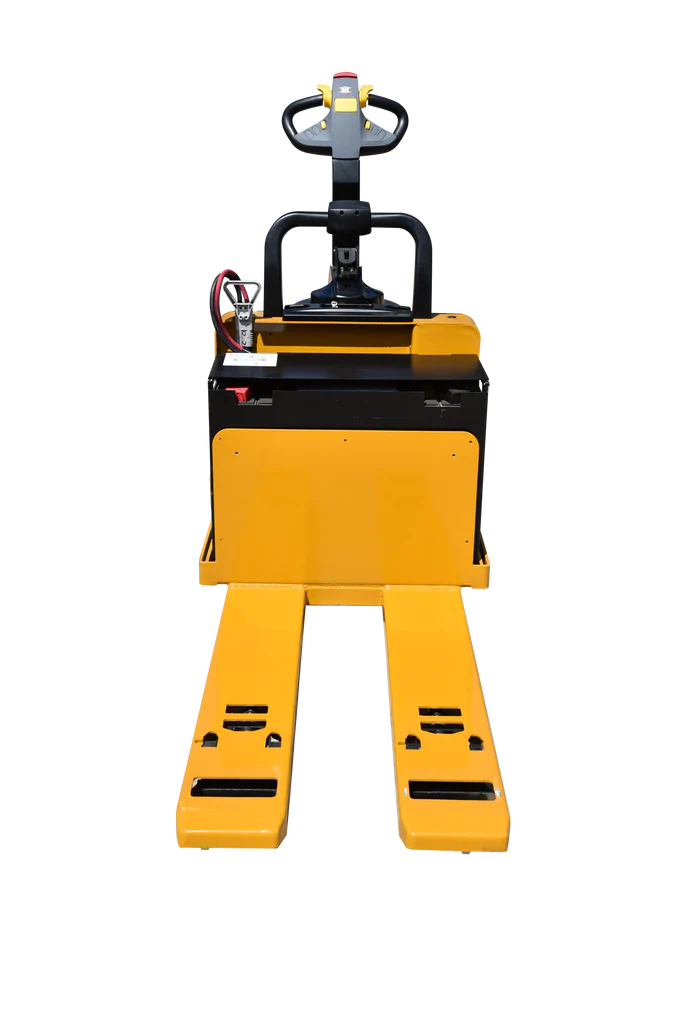

Our 6,000 lb capacity AC pallet truck is built for high productivity, reliability and low operating cost. A large AC drive motor propels it up to 9 mph so operators move more product per hour, and with no moving parts in the drive motor, many maintenance costs disappear over the equipment's life. Heavy-duty steel construction and best-in-class non-proprietary parts deliver exceptional value. If you need a powered pallet truck that's tough and highly productive, this is it.
Get Pricing
Request a quote
Rent, buy or lease — tell us what you need to move.
Features
Built for all-day duty
24V ZAPI AC transistor control
Large high-torque AC drive motor
Heavy-duty transmission
Shaft-mounted electromechanical brake
Ergonomic handle with lift, lower and infinitely variable speed control
Ergonomic high-speed bar with lift, lower, horn and high-speed controls
Safety reversing switch, dual horn controls and tiller release brake
Battery discharge indicator with hour meter
Key switch to limit access to approved operators
Specifications
Technical data
| Vehicle Type | Motorized rider pallet truck |
|---|---|
| Max Capacity | 6,000 lb @ 24" load center |
| Power | 24V electric, ZAPI transistor controller-inverter |
| Max Lift Height | 8.25" |
| Collapsed Height | 3.25" |
| Fork Dimensions | 27" W x 46.75" L (varies by order) |
| Vehicle Dimensions | 36" W x 91.6" L (varies by order) |
| Turning Radius | 81.2" (with 27 x 48" forks) |
| Travel Speed | Programmable: 0–9 mph empty / 0–6.5 mph loaded |
| Battery Compartment | 31.12" x 13.12" x 31.62" |
| Battery | 510 Ah industrial (recommended) |
| Charger | External industrial |
